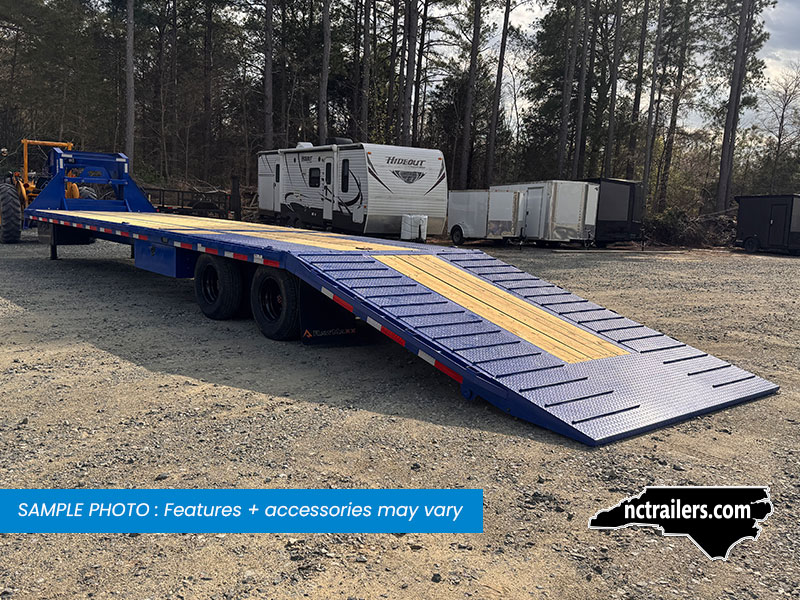

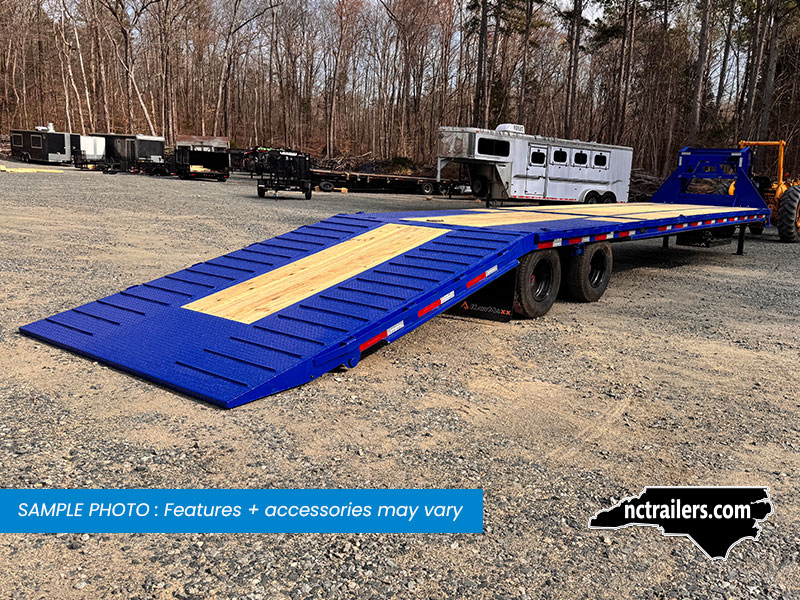

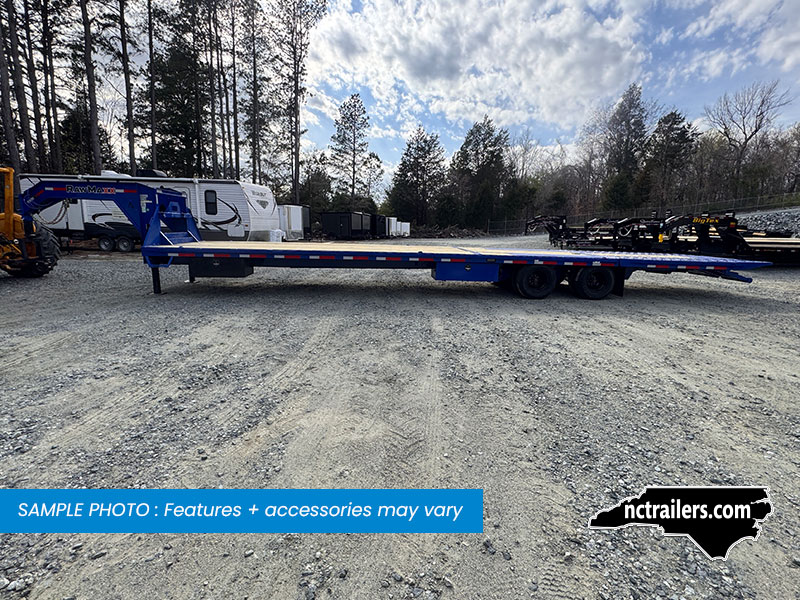

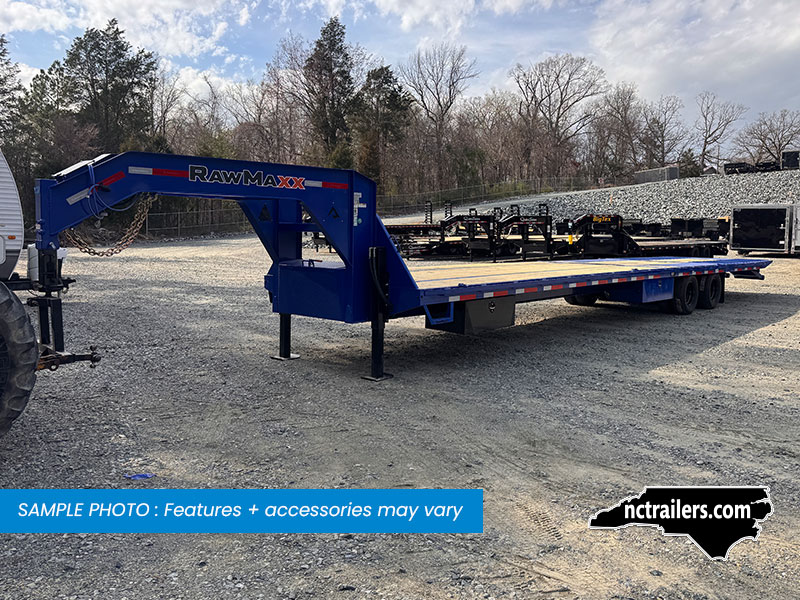

The RawMaxx HTX gooseneck equipment trailer has a 102" wide deck, with lengths from 30' to 40' flat bed + 11' hydraulic lift tail. Gooseneck and underbody toolboxes and underbody dunnage rack. Two side wind 12,000 lb drop leg jacks. 2" rub rails with spools and stake pockets. 30' slide track for ratchets. Tandem leaf spring axles with electric brakes, 24,000 lb GVWR.
SPECIFICATIONS (34+6 Model):
GVWR : 24,000 lbs
Capacity : 14,807 lbs
Weight : 9,193 lbs
Frame : 12" I Beam
Crossmembers : 3" Channel 16" O.C.
Axle : [x2] 12,000 lb Leaf Spring
Jacks : 12,000 lb. Drop Leg Jacks
Rub Rails : 2" with Spools + Stake Pockets
Wheels : 16" 235/80R16 10-ply

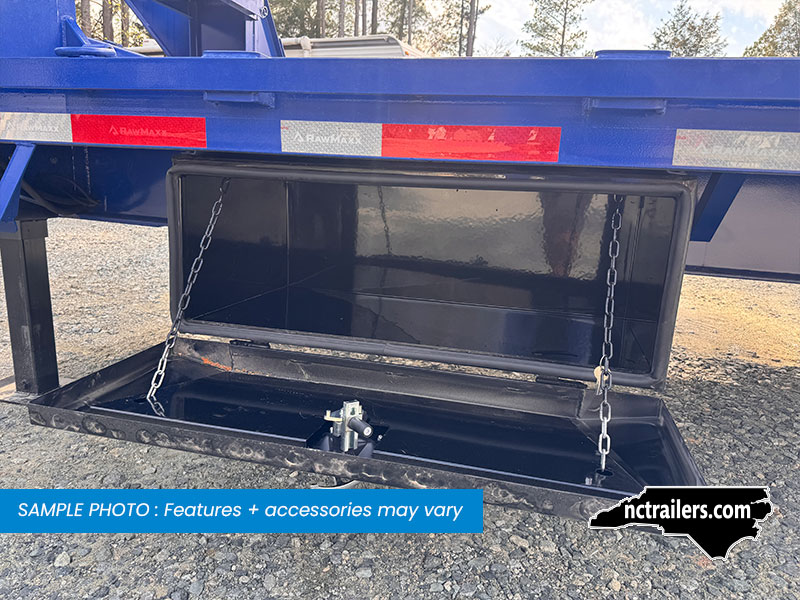

Tool Box : Tongue, Underbody, Dunnage
Torque Tube : 5" Round Tube
Floor : 2" Treated Wood
Coupler : Adjustable 2-5/16" Ball Coupler
Electric Plug : 7-way RV
Lights : LED
