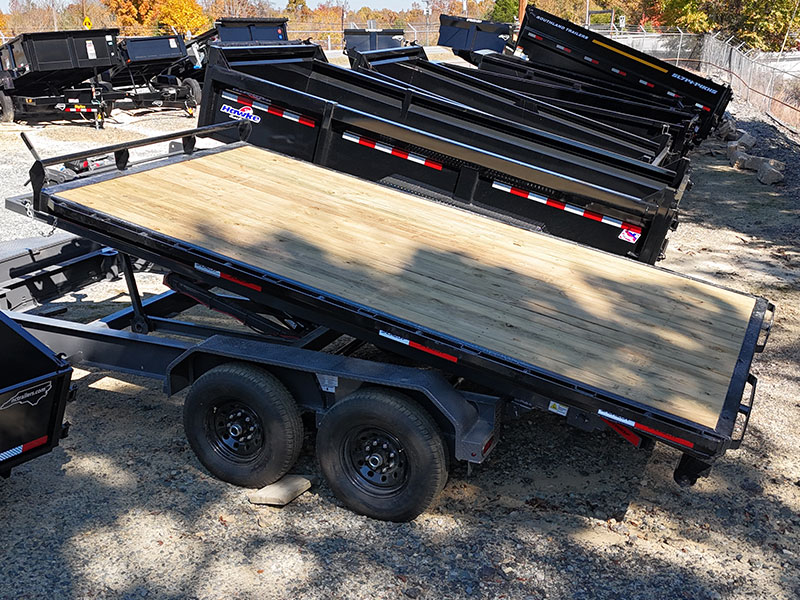

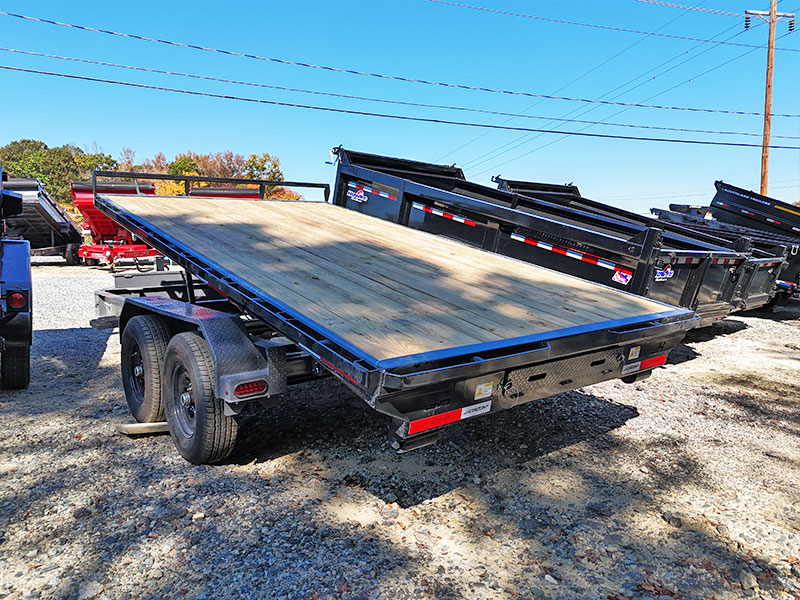

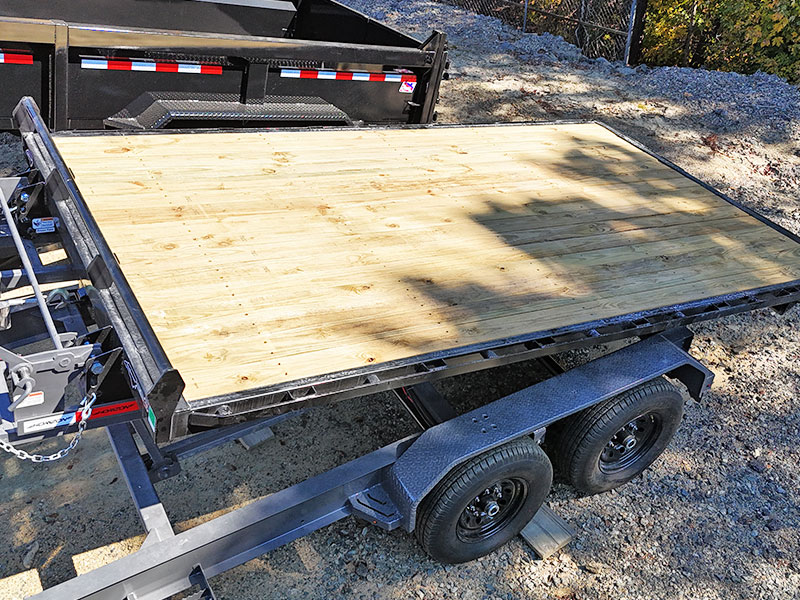

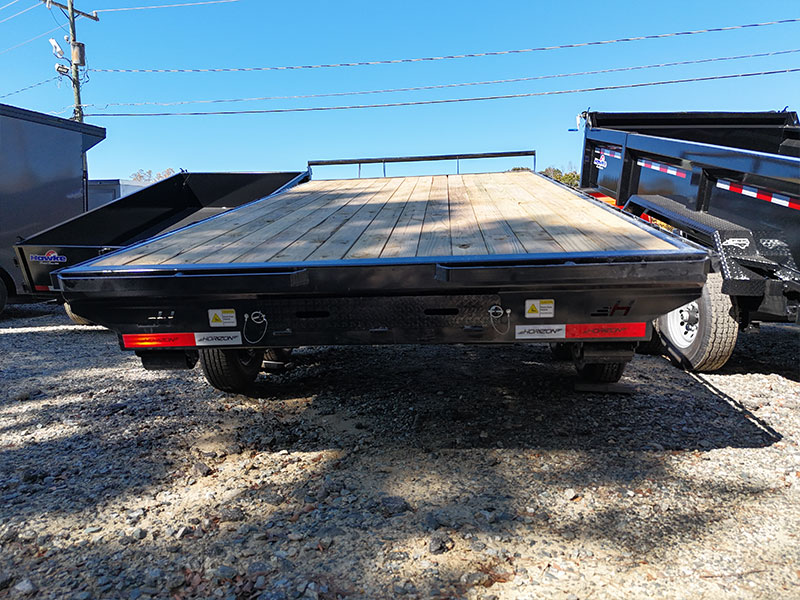

HORIZON ROLL-OFF FLATBED MODEL ROZ

The Horizon ROZ roll-off flat bed comes in 14′ and 16′ lengths with or without dovetail.  This flat bed attachment is compatible with the Horizon RDZ and HRD roll-off trailers.  Unit comes with greaseable rollers and slide-in ramps.

SPECIFICATIONS:

Base Width : 60″

Deck Width : 96″

Deck Length : 14′ and 16′ options

Dry Weight : 14′ = 2,110 lbs, 16′ = 2,645 lbs



Floor : Straight Deck (Pine Lumber)

Roll Off Frame2″ x 8″ x 7ga. Tubing Bed Frame

Crossmembers : 3″ Channel (3.50 lbs/ft) 64″ Spacing

Deck Frame : 2″ x 5″ x 11ga. Tubing Bed Frame

Ramp : [x2] 66″ Long Heavy Duty Slide In 4″ Channel Ramps

Rollers : Front/Rear (Greasable)

Tie Downs1-5/8″ x 3-5/8″ (ID) Stake Pockets

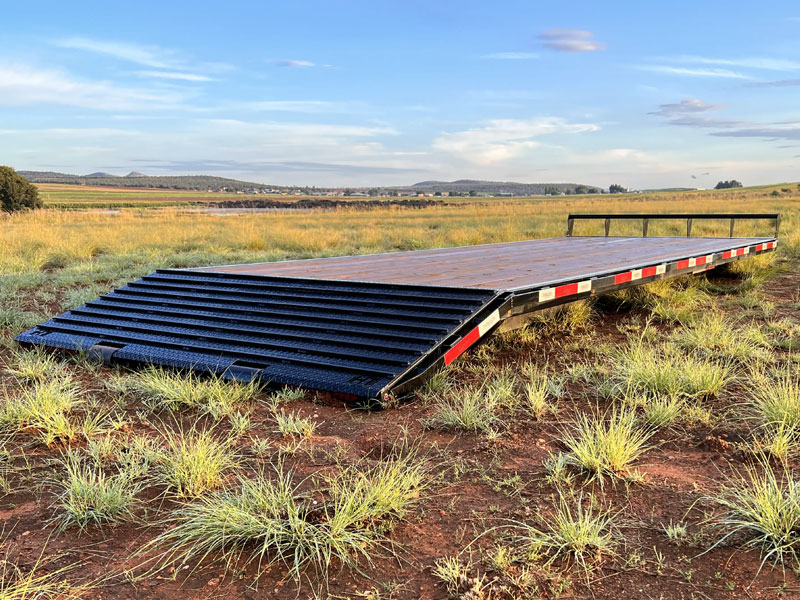

Optional Dovetail : Extra 3′ Knife Edge w/ Traction Cleats

COLOR OPTIONS:
