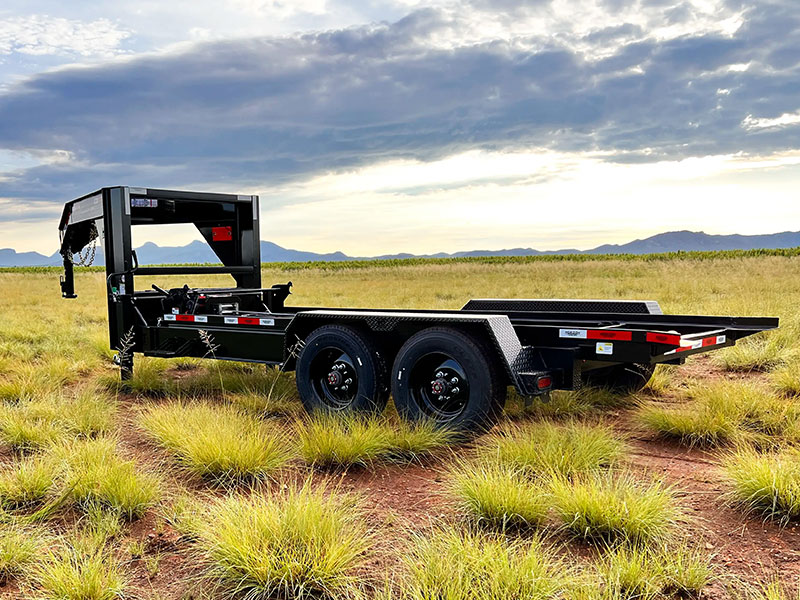

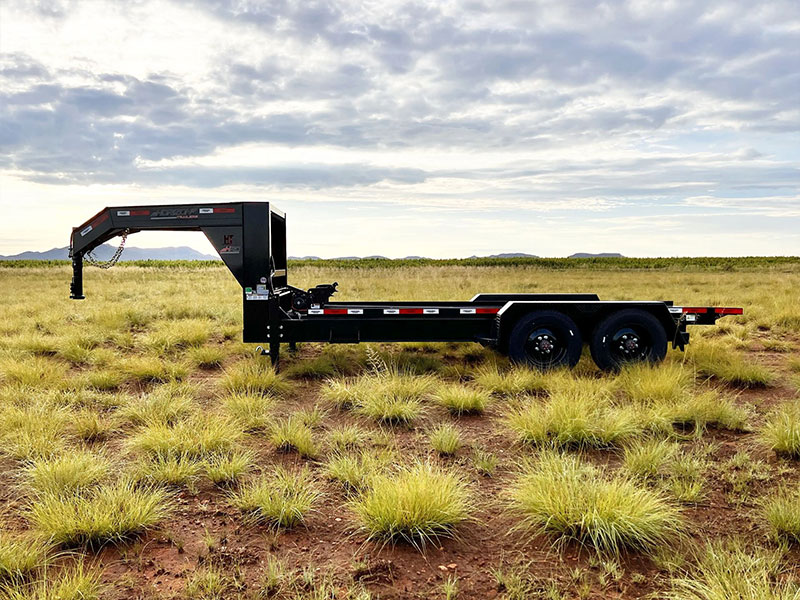

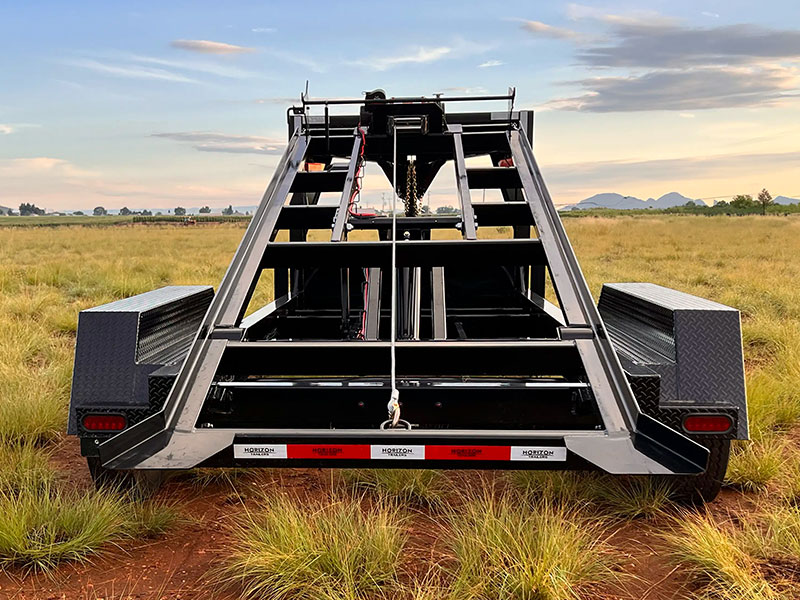

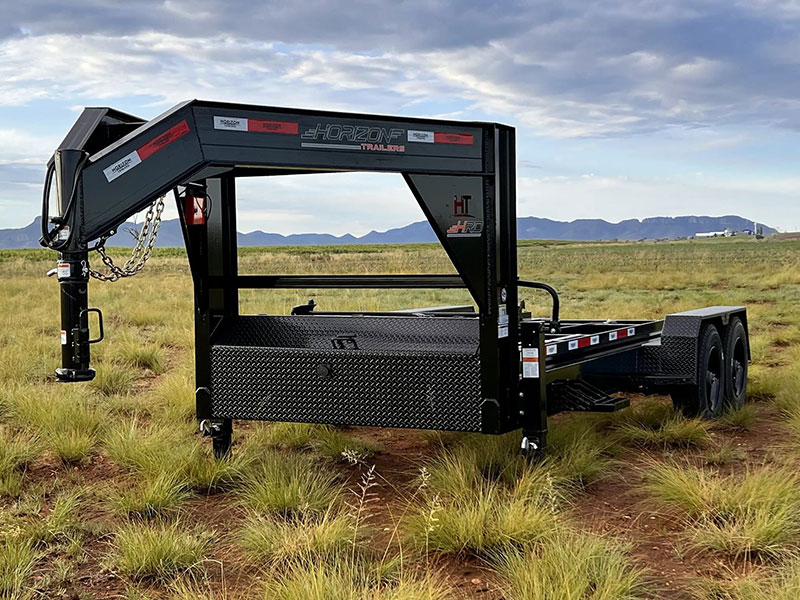

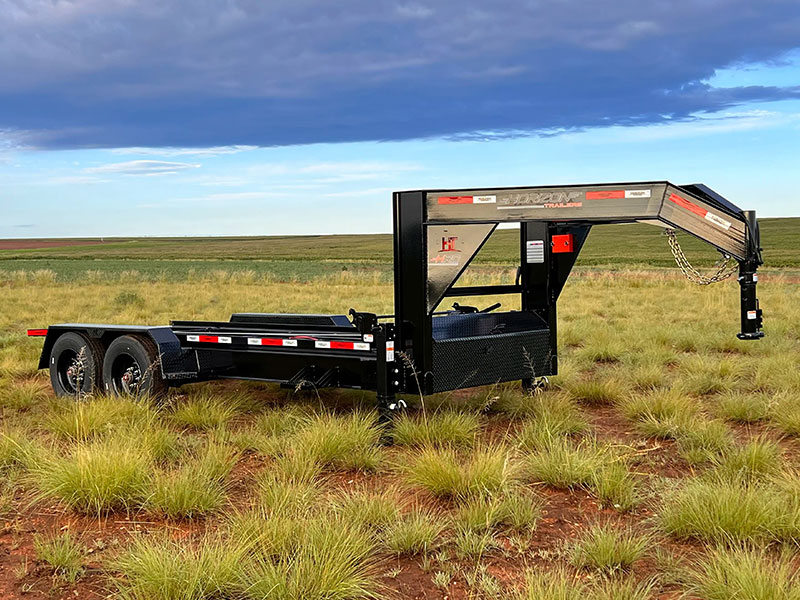

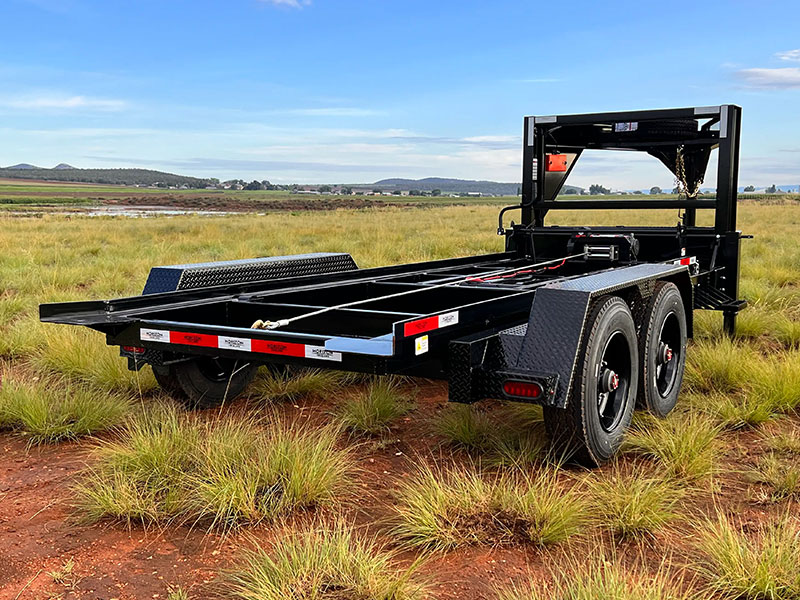

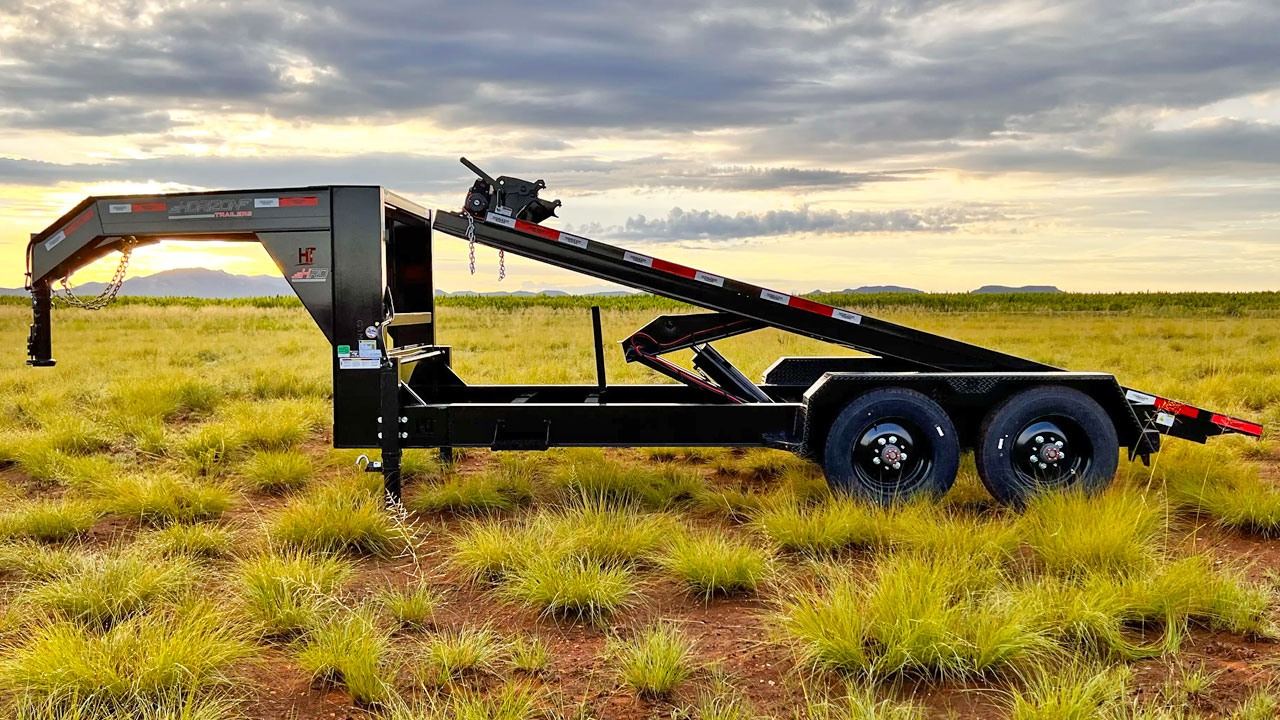

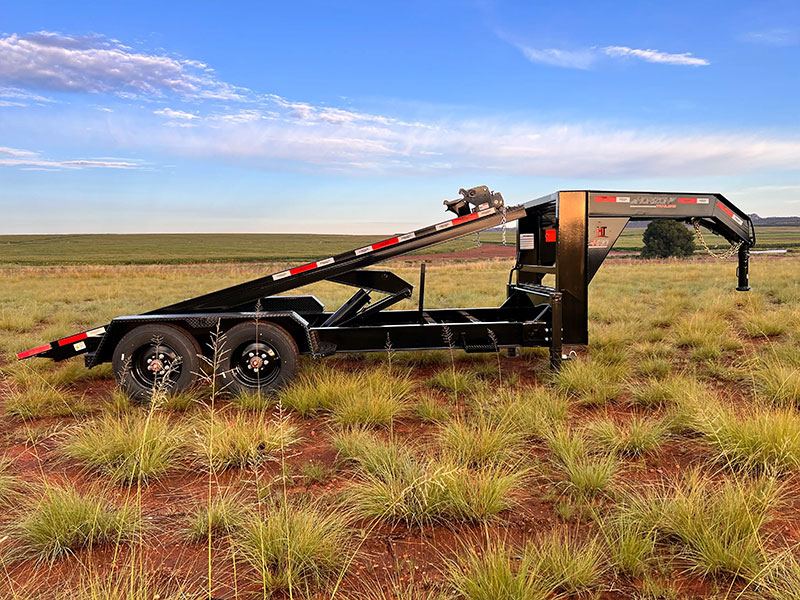

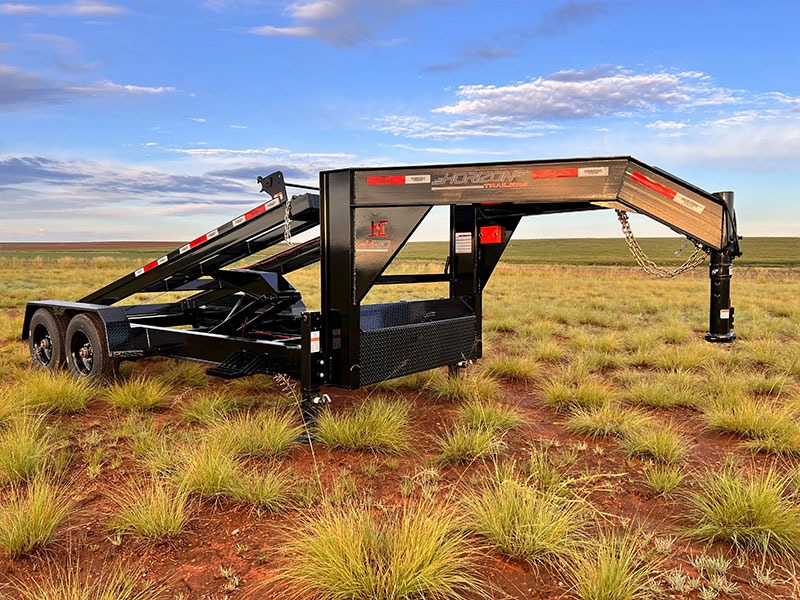

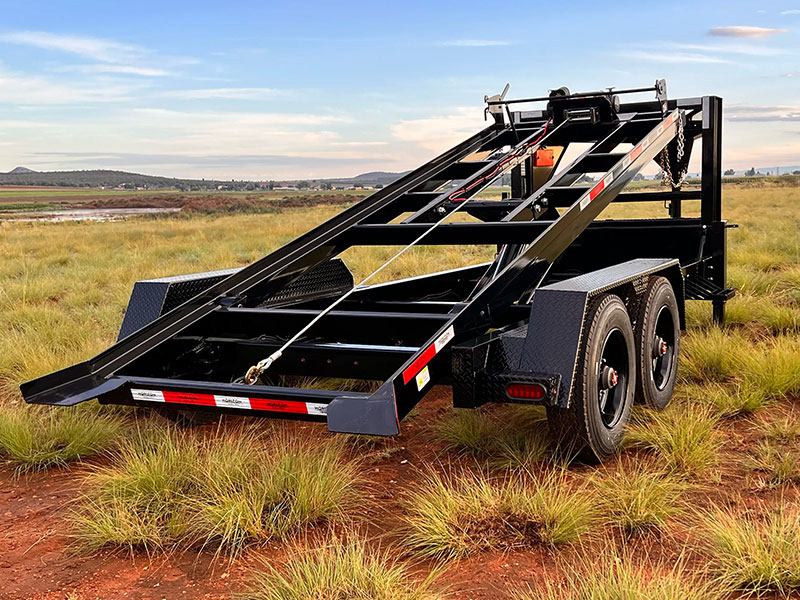

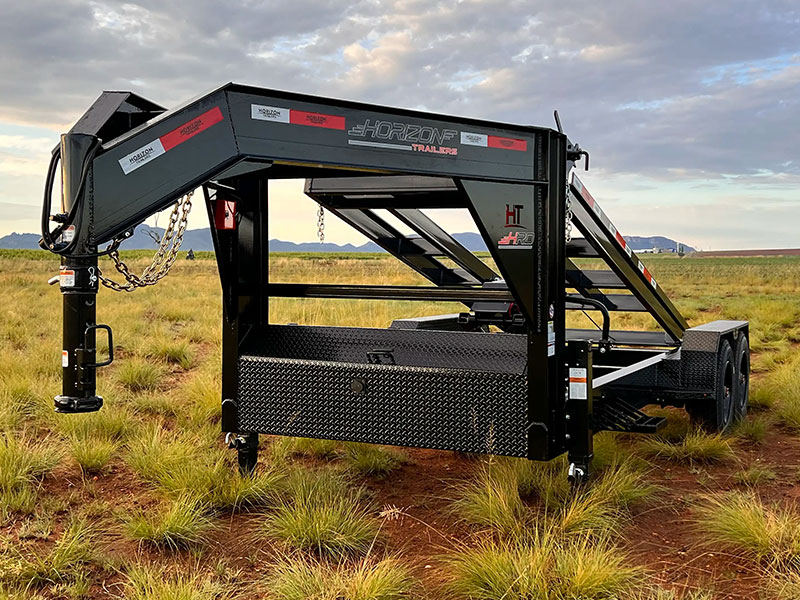

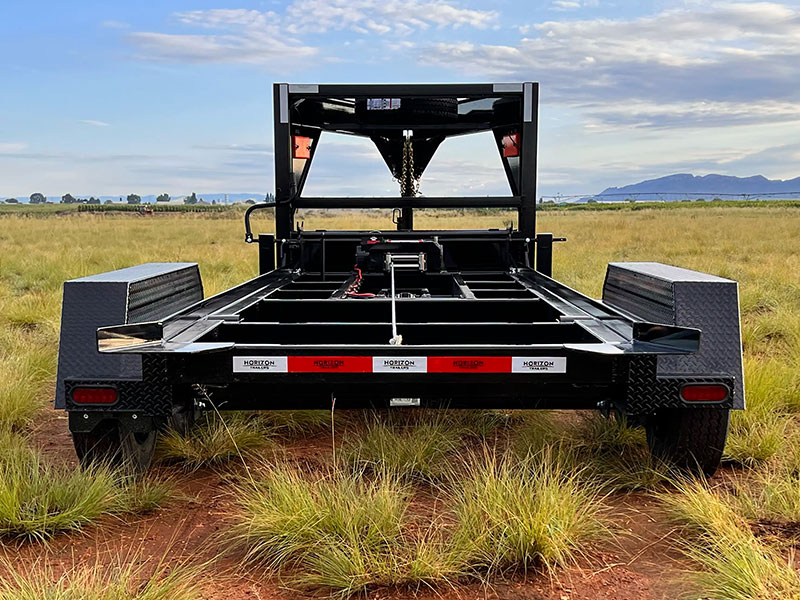

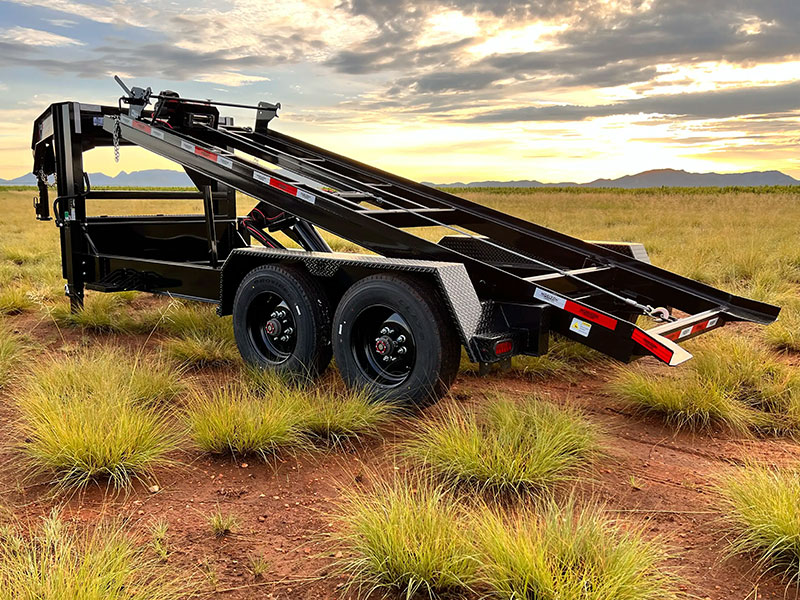

HORIZON GOOSENECK ROLL-OFF TRAILER MODEL HRD

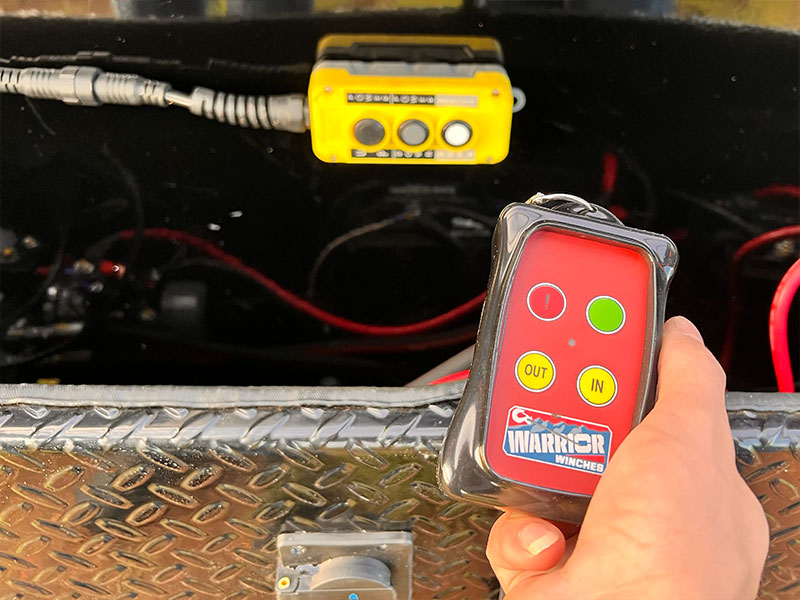

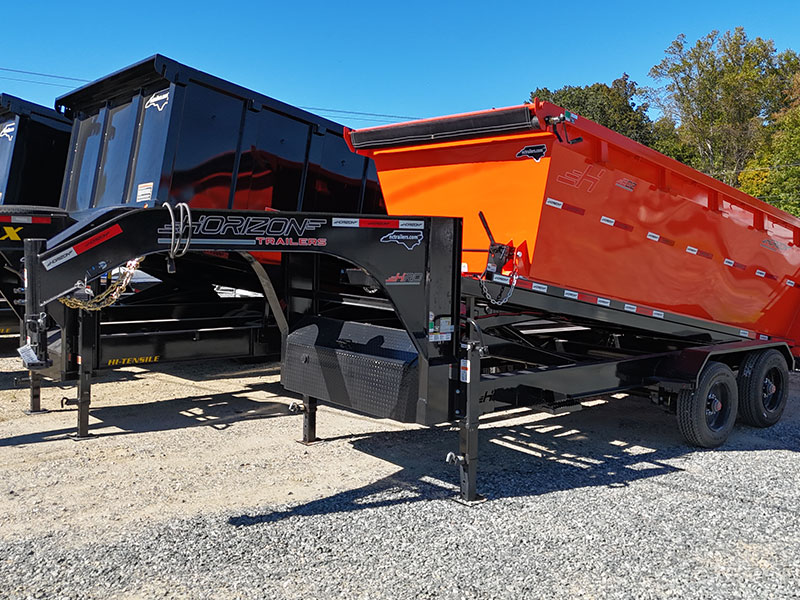

The Horizon HRD gooseneck roll-off trailer has a 61″ x 16′ deck compatible with the optional roll-off ROZ flat bed or EDZ dump bed. This unit has a 20,000 lbs winch,  24,000 lb GVWR.

SPECIFICATIONS:

GVWR : 24,000 lbs

Capacity : 18,805 lbs

Weight : 5,195 lbs

Frame : 2″ x 5″ x 7ga. Tubing Bed Frame

Crossmembers : 2″ x 5″ x 7ga.



Axle : [x2] 10K Lippert Electric Brake Oil Bath Torsion Axles

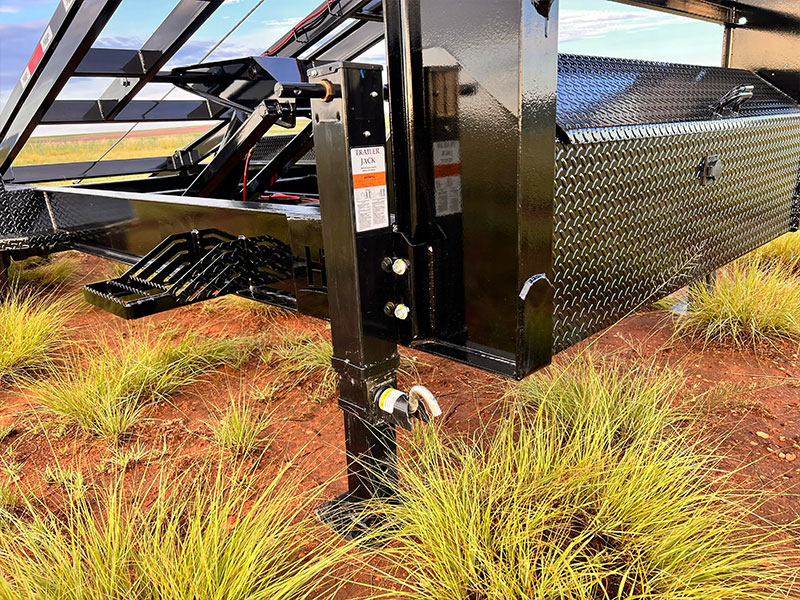

Jack2 Side Wind Drop Jack Legs

Hydraulics : Power Up / Gravity Down

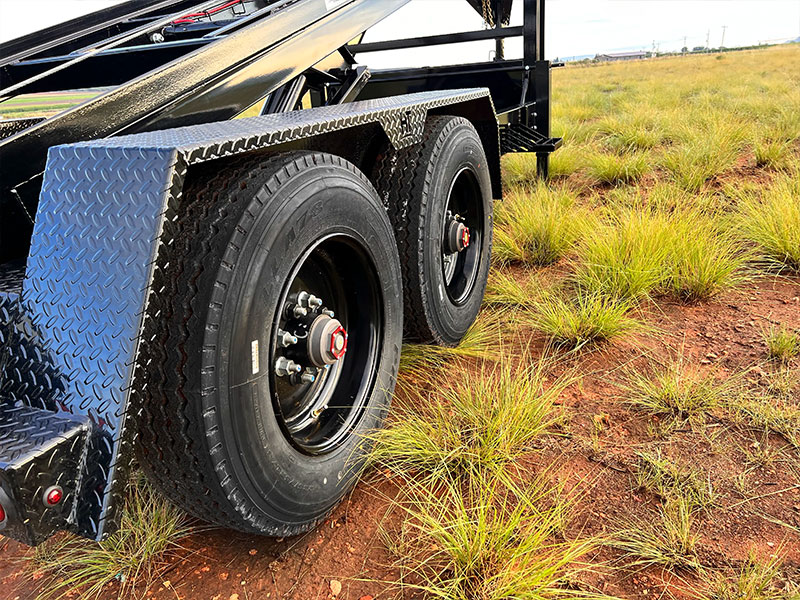

Fenders : 12 ga diamond plate steel

Wheels : ST235/75R17.5 18 Ply Super Single Tires

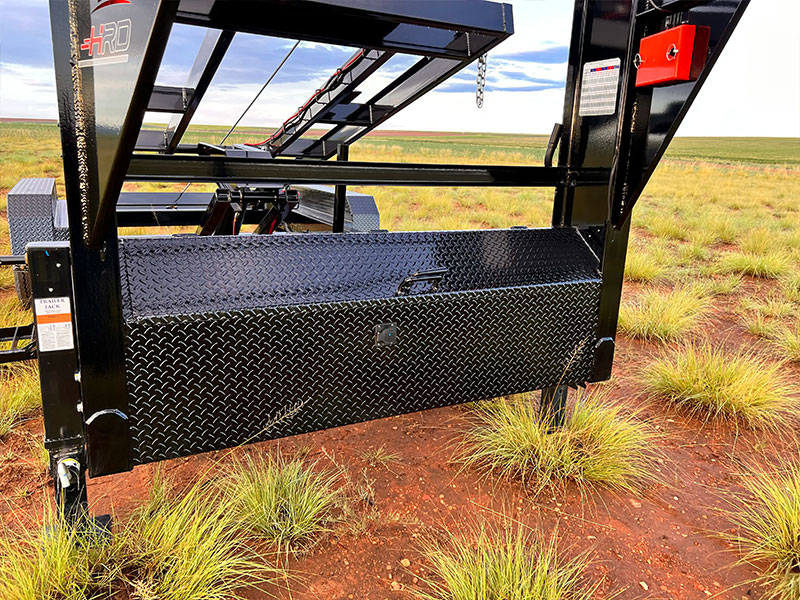

Toolbox :  Lockable Storage

Coupler : GN 2-5/16″ Ball

Electric Plug : 7-way RV

Lights : DOT-APPROVED LED

Battery : Deep Cycle, 110V Integrated Trickle Charger

COLOR OPTIONS:
