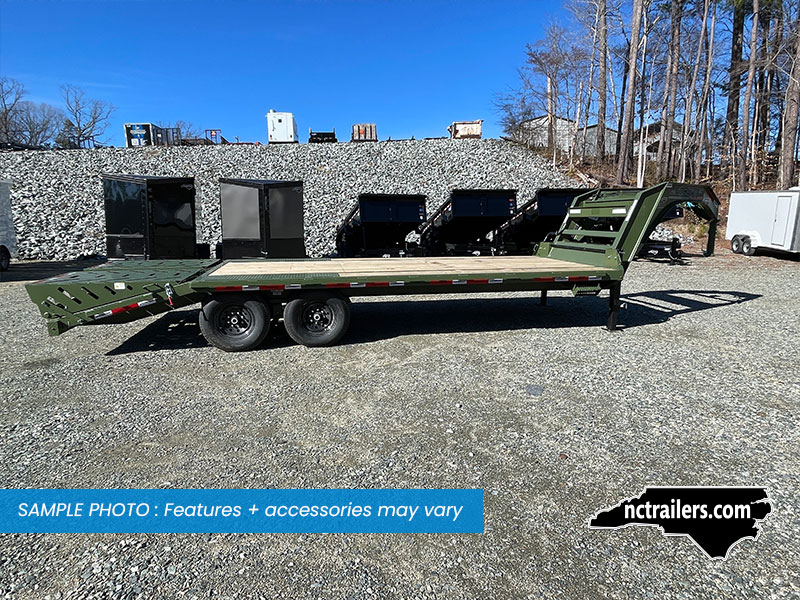

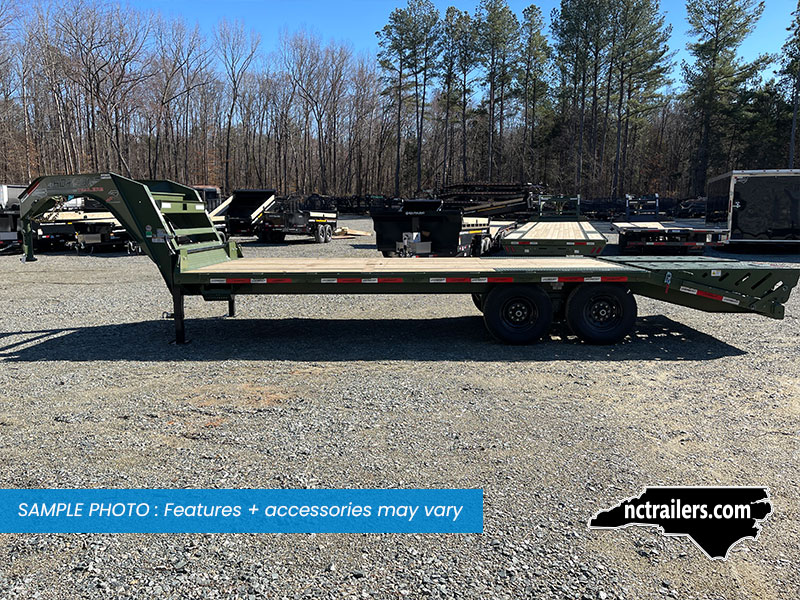

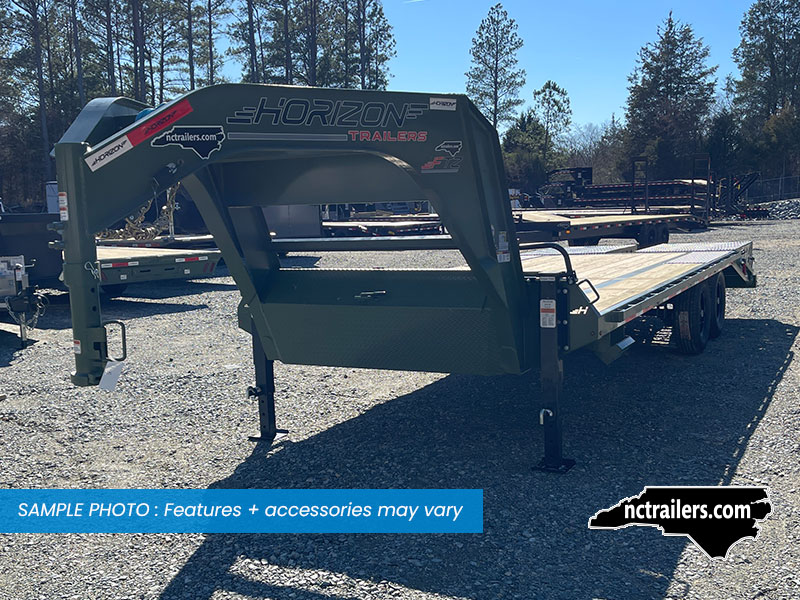

HORIZON GOOSENECK EQUIPMENT TRAILER MODEL FTZ

The Horizon FTZ equipment trailer has a 8.5x22 deck. This unit has a 5' dovetail with mountain (wedge) ramps, tandem-axles and electric brakes, 17,920 lb GVWR with a 13,290 lb capacity.
SPECIFICATIONS:

GVWR : 17,920 lbs

Capacity : 13,290 lbs

Weight : 4,630 lbs

Deck : 5' Dovetail (Pine Floor + Steel)



Frame : 12" I-Beam, 4-1/2" Torque Tube

Axle : [x2] 7k Lippert Electric Brake EZ Lube Spring

Jack : 12,000 lb. Side-Wind Drop Jack Leg

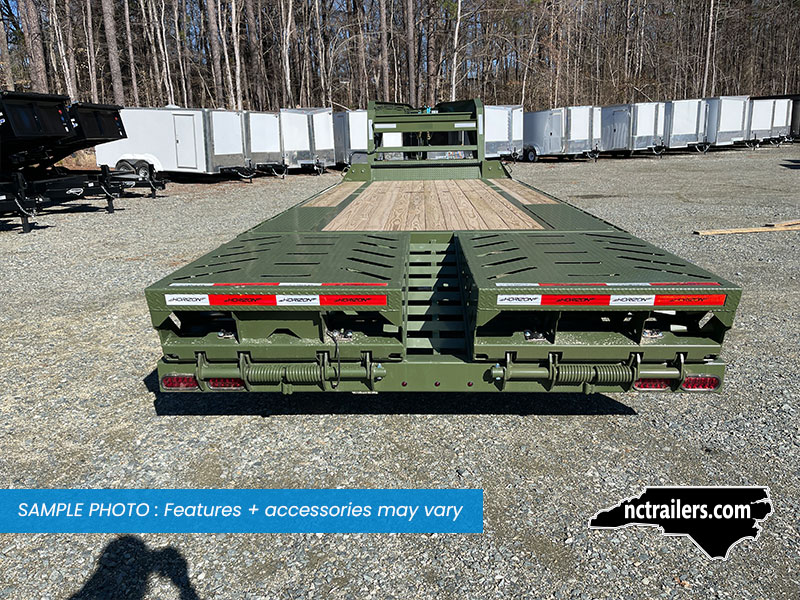

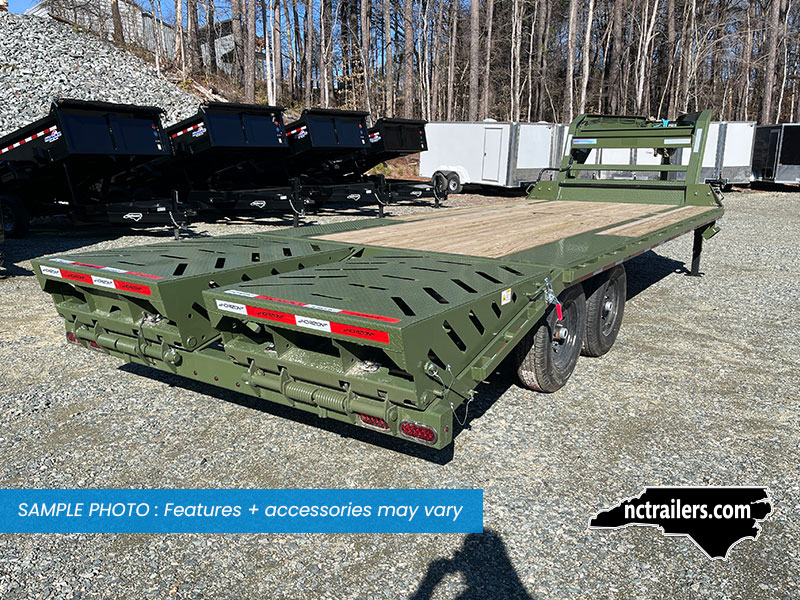

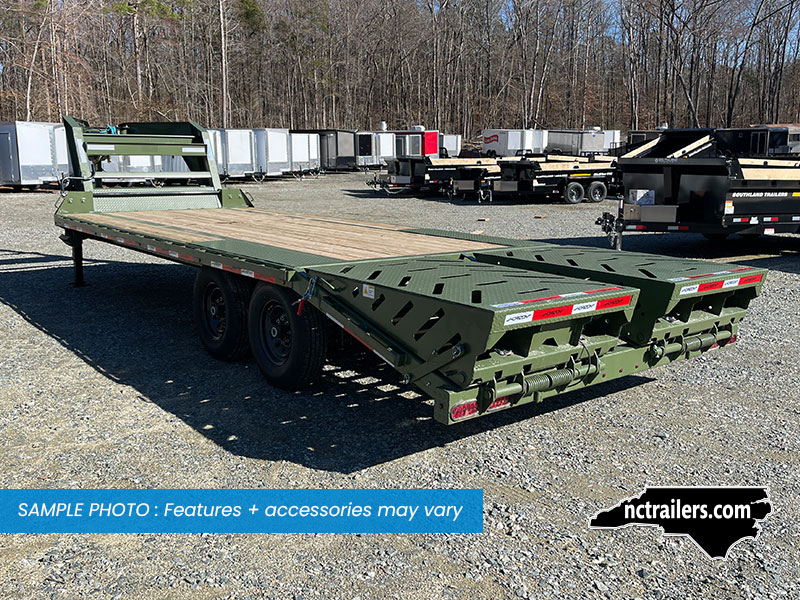

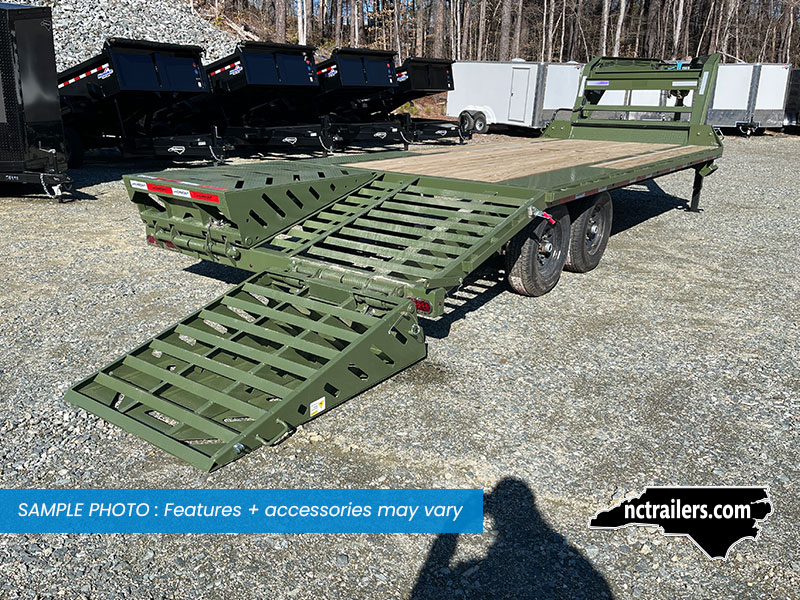

Ramp : [x2] Mountain (Wedge)

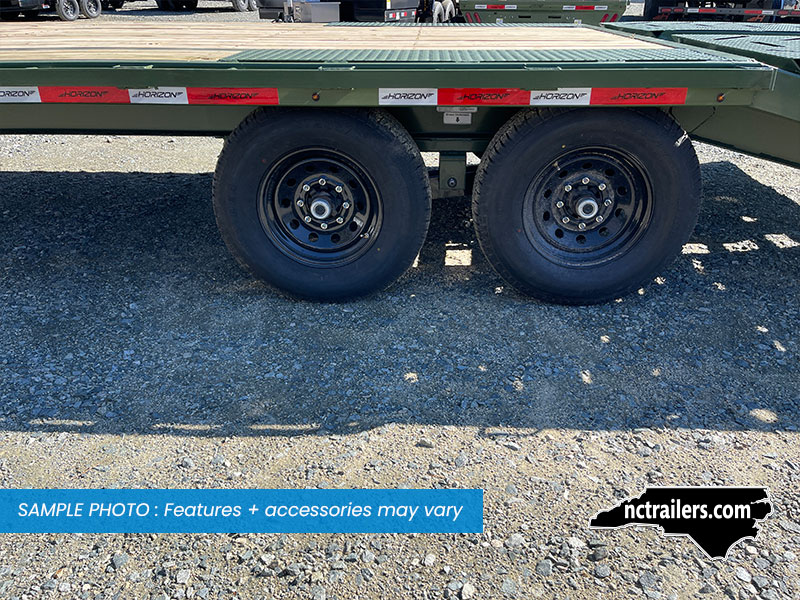

Wheels : 235/80R16

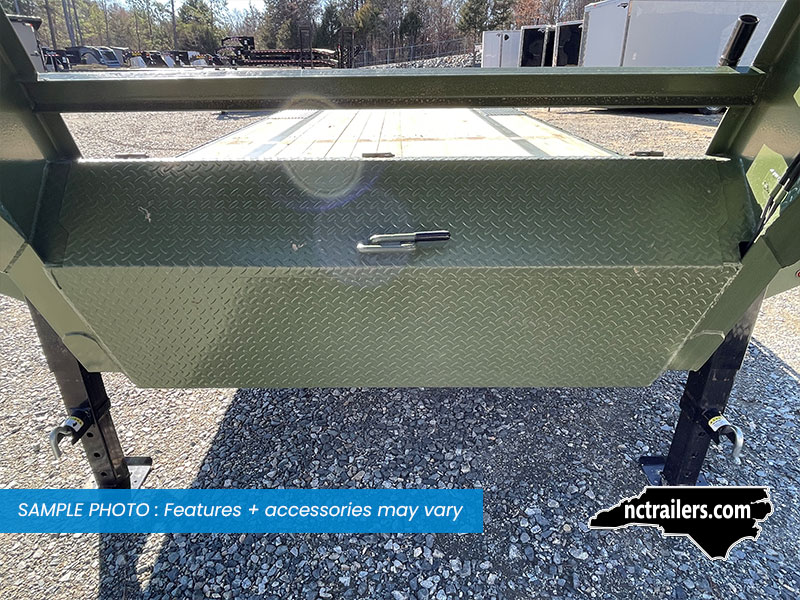

Tool Box :  Lockable Storage

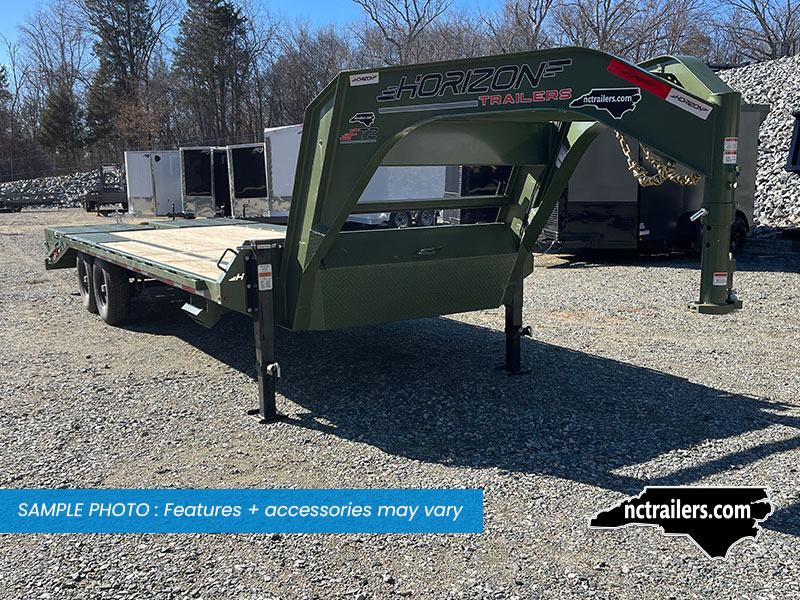

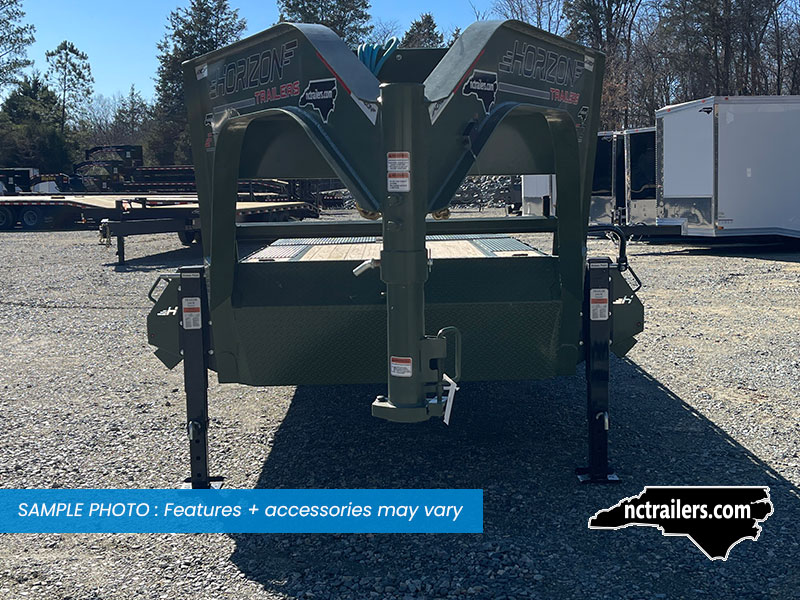

Coupler : Gooseneck 2-5/16" Ball

Electric Plug : 7-way RV

Lights : DOT-APPROVED LED
