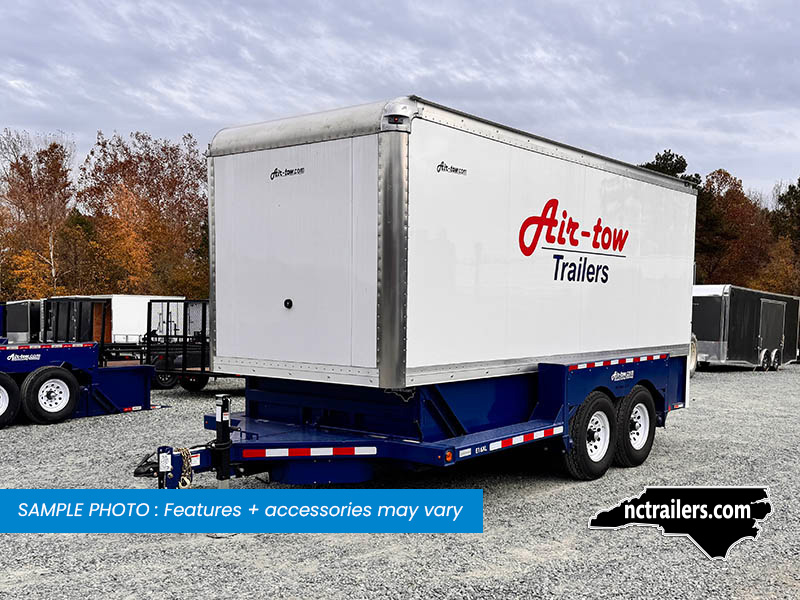

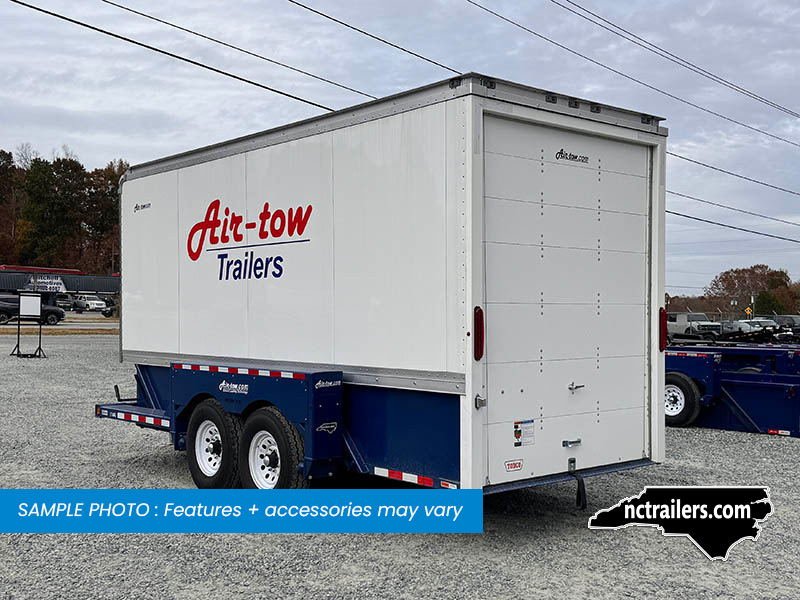

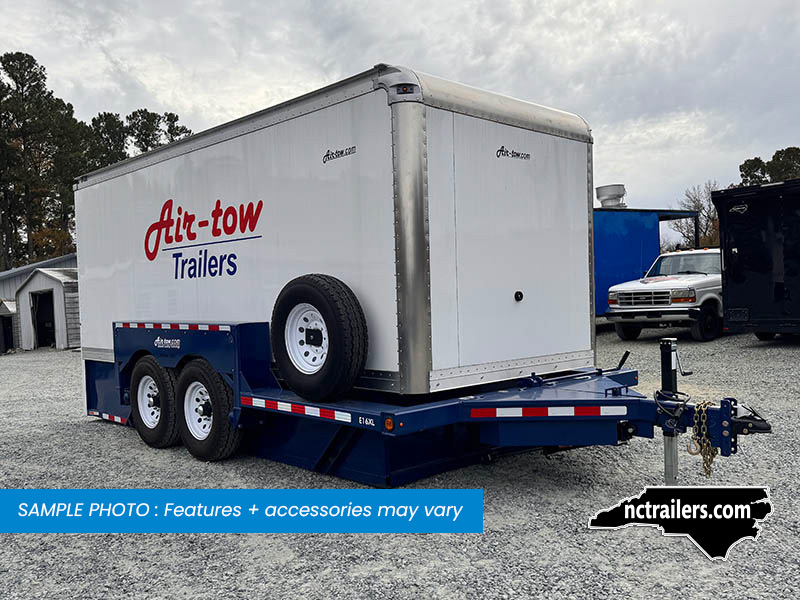

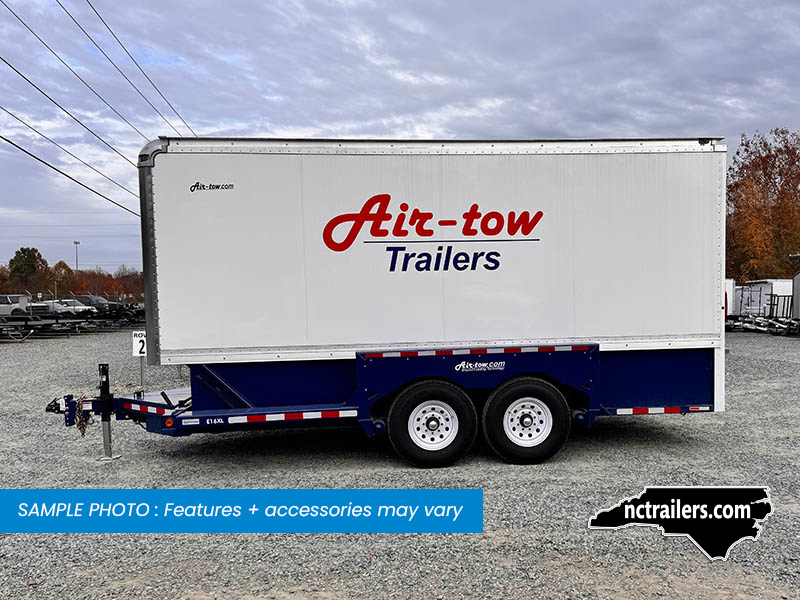

AIR-TOW ENCLOSED TRAILER MODEL E-16XL

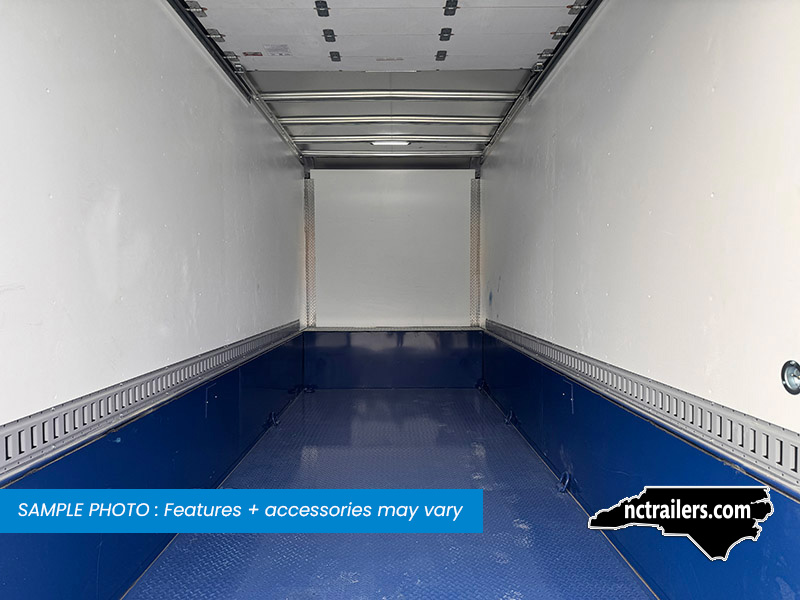

The E-16 XL is the largest enclosed trailer in the Air-tow line and comes preloaded with many features. It has 15'9" of usable deck space and can carry ups to 10,000 lbs. The front-end is extended beyond the regular deck that allows for a 15" shelf and an extra 36 cubic ft. to work with. The aerodynamic design of the front-end not only adds space, but reduces air resistance and increases gas mileage. The back-end is also extended 16" to round out the total storage space at 838 cubic ft. Other standard features that set the E-16 XL apart from the regular E-16 include: a self-locking rollup door, 2 LED interior lights and a 3/8" plywood interior lining. This trailer is also very customizable with options for E-tracks, X-tracks, nose cone and many more accessories
SPECIFICATIONS:
GVWR : 14,795 lbs
Capacity : 10,000 lbs
Weight : 4,795 lbs
Deck Material : Diamond Plate Steel
Color : Royal Blue
Enclosure WxLxH (Inside) : 75" x 189" x 94"
Door Height : 90" H x 71" W (Roll-Up Door Standard)
Shelf Storage Space : 15"
Ramp Size (Outside) : 18"
Overall Width : 102"
Axles : Tandem
Wheels/Tires : 16″ – 12 Ply
Brakes : Electric
Suspension : Rubber
Lift Mechanism : Hydraulic
Coupler : 2-5/16" Ball
FEATURES:
8 Heavy-Duty D-Rings
Adjustable Chain
Adjustable Coupler
Bright LED Lights
Cam-Lock Door Lock System
Durable Powder Coat Paint
Extra-Wide Deck
Fenderless
Ground-Level Loading
Heavy-Duty Diamond Deck
Heavy-Duty Enclosure w/ Galvanized Z-Bar Studs
Non-Tilting Deck
Remote Control
Rubber or Air Suspension
Swing-Arm Axles
