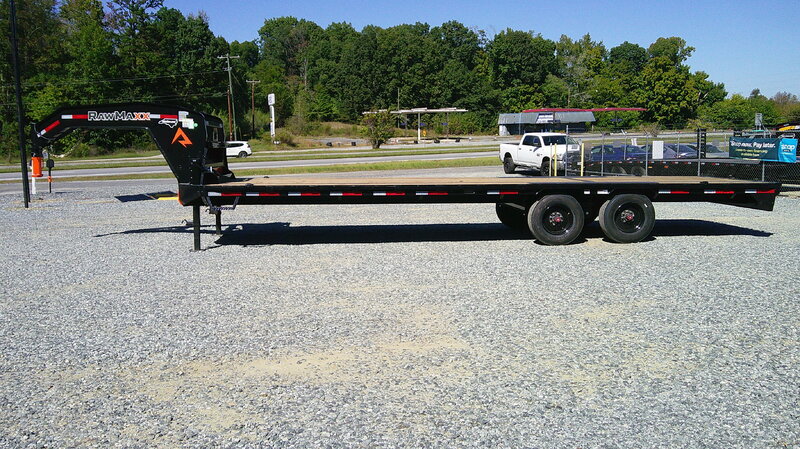

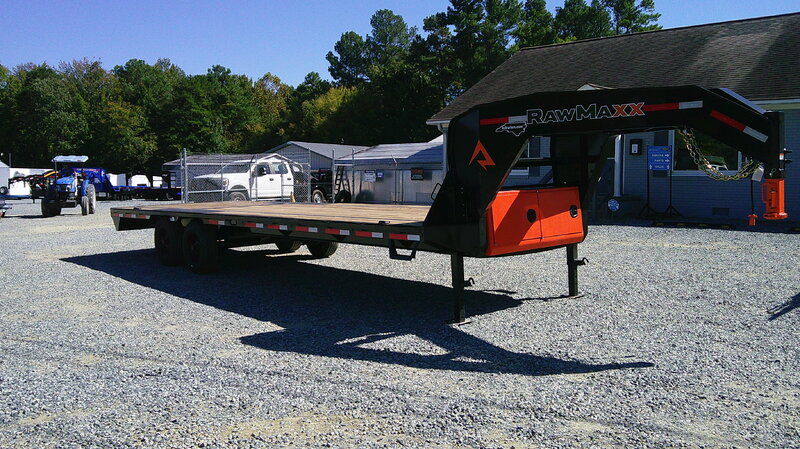

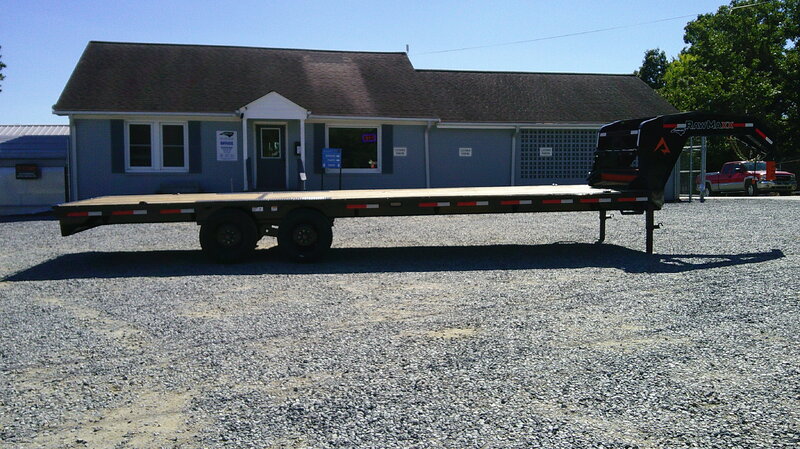

When the job calls for a flatdeck that stays simple, hauls clean, and works day after day, the RawMaxx FDX is built to do exactly that. Available in 16′ to 44′ lengths with 14K, 16K, and 20K configurations, the FDX is designed for contractors, equipment operators, and everyday haulers who need a dependable gooseneck flatdeck without unnecessary complication.

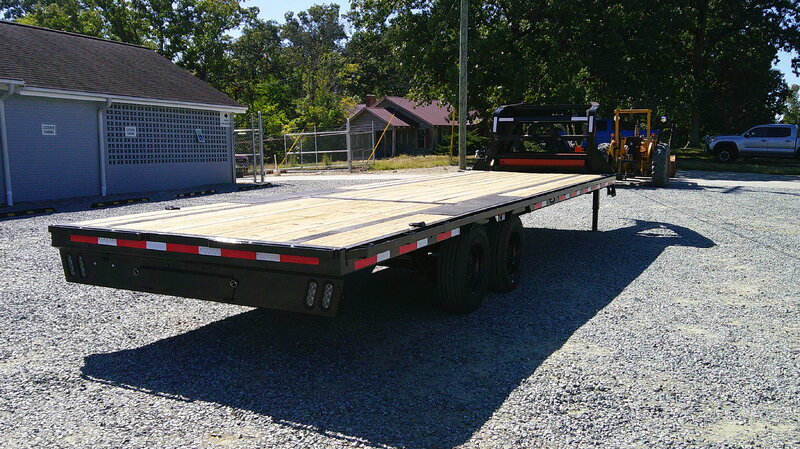

At the core of the trailer is a 12″ x 14 lb. I-beam main frame with 3″ channel cross-members on 16″ centers, a 2″ treated wood deck, and a 6″ channel outer deck frame built to give the platform real structure across a wide range of lengths. A full 102″ deck width, 2″ x 3/8″ rub rail, stake pockets, chain spools, and welded D-rings at the corners give crews the space and securement points needed for equipment, materials, and everyday freight. On longer models, the added torque tube helps maintain stability and confidence across extended deck lengths.

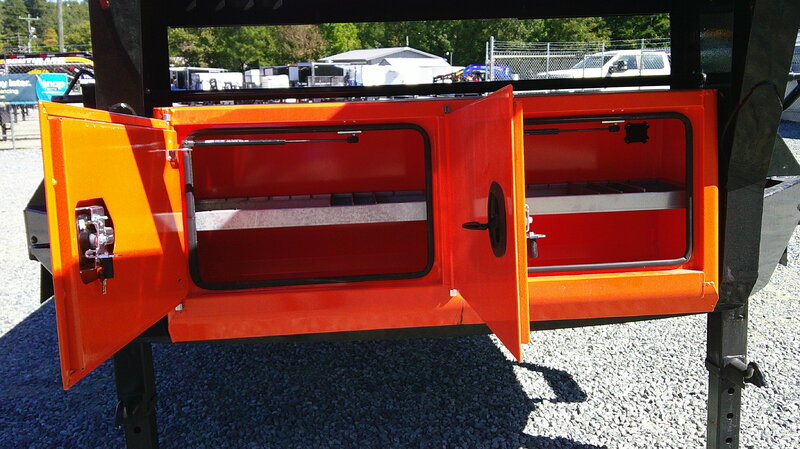

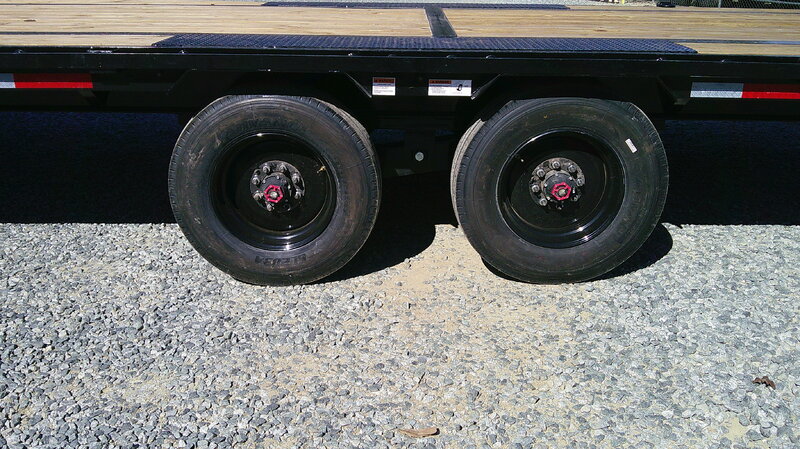

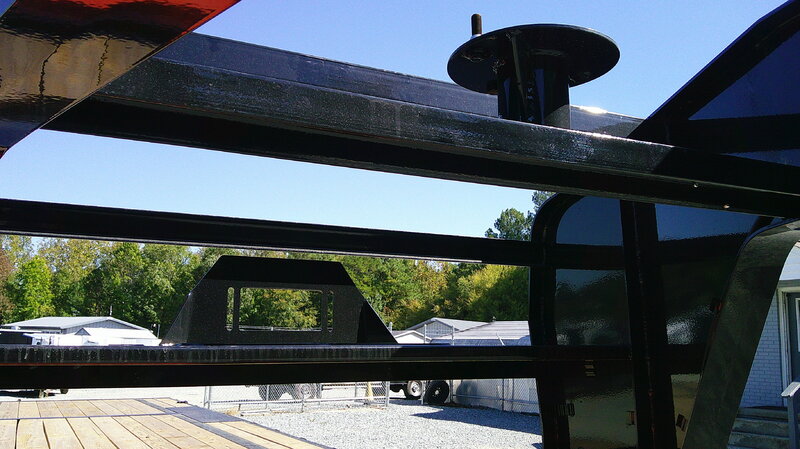

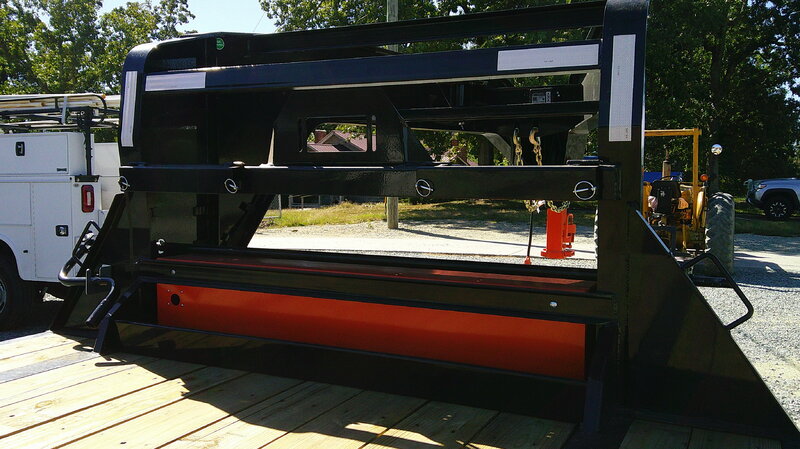

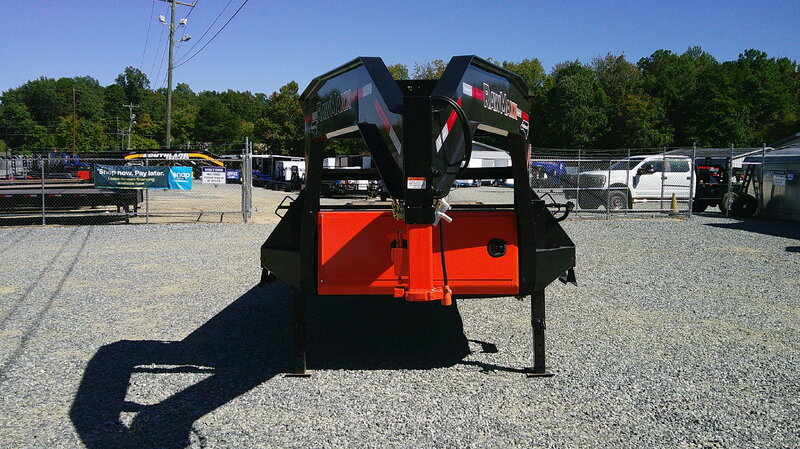

Up front, the FDX is built around a 93″ gooseneck, adjustable 2-5/16″ ball coupler, dual 10,000 lb. drop-leg jacks, and a lockable toolbox between the risers for practical day-to-day use. In the rear, the straight deck with 8′ slide-in channel ramps keeps loading simple and proven. Electric brake axles, all-weather wiring, LED lighting, G70 safety chains, and a spare tire mount round out a trailer built for steady work and repeat use.

For operators who need more from the platform, the FDX can be upgraded with 8K or 10K axle packages, heavier tire options, steel floor or pro wood, dovetail ramp packages, slide-track ratchet systems, additional D-rings, winches, underbody storage, and extra lighting. It is a gooseneck flatdeck built for crews who want clean structure, straightforward loading, and a trailer that earns its keep every day.

The RawMaxx FDX — simple where it should be, strong where it matters, and built for the work that needs to keep moving.

• GVWR: 20,000 lbs

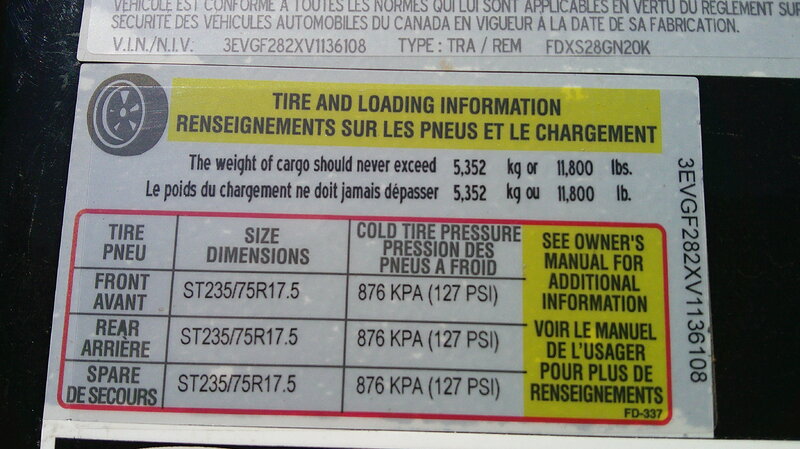

• PAYLOAD: 11,800 lbs
• HITCH: 2-5/16" Gooseneck Ball Coupler (25K lbs)
• TIRES: ST235/75R17.5 18ply
