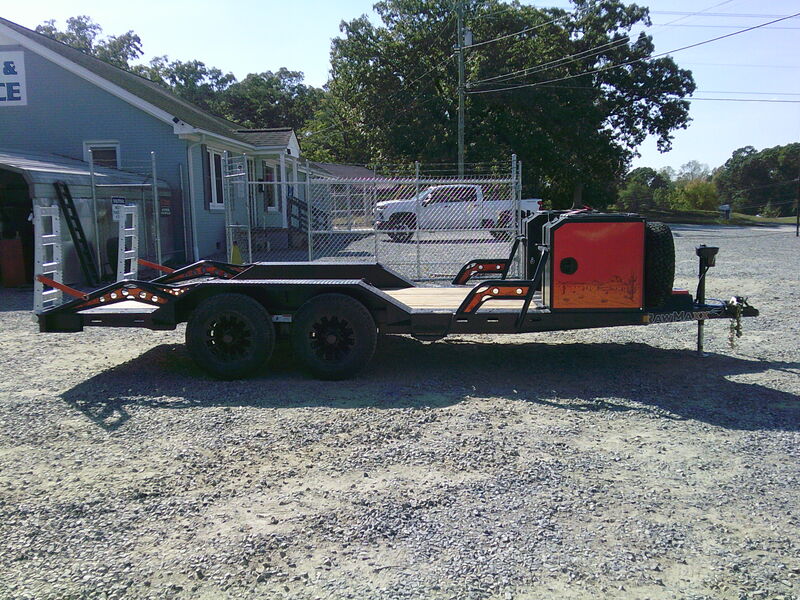

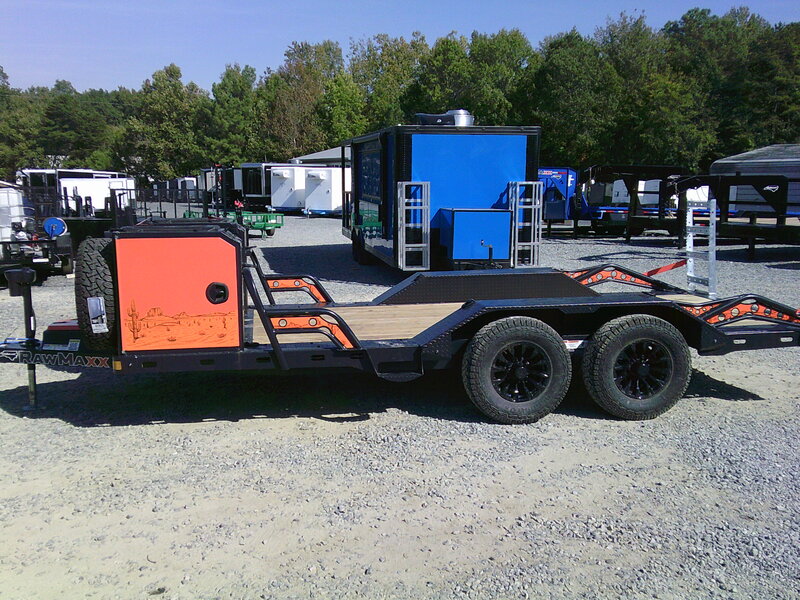

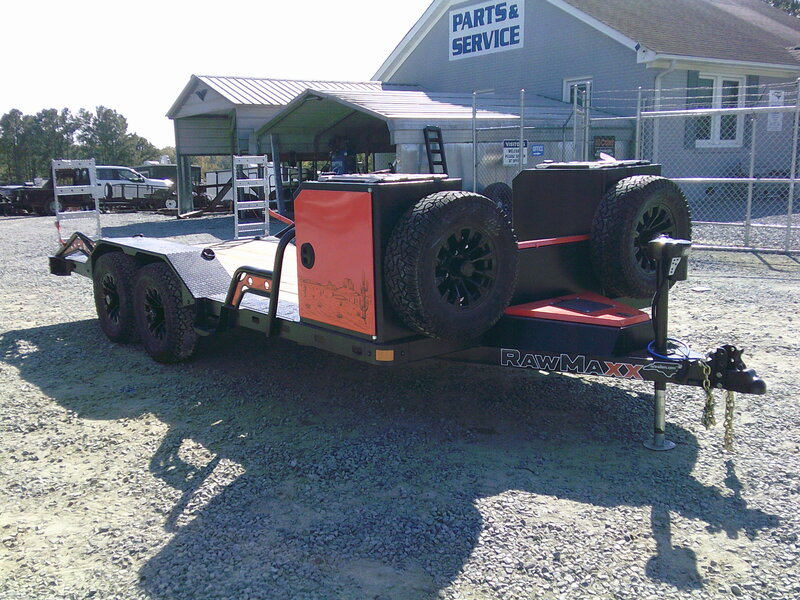

Built for the machines you work with and the ones you live for, the RawMaxx ABX combines the versatility of a utility trailer with the attitude and function of a Baja-inspired toy hauler.

Available in 16′ and 18′ lengths, the ABX features an 89″-wide deck, a 10,000 lb. GVWR, and tandem 5,200 lb. electric brake axles, giving you the space and strength to haul side-by-sides, ATVs, motorcycles, landscaping equipment, building materials, and more.

Built on a 4″ channel main frame with 2″ × 3/16″ angle cross-members placed on 16″ centers, the ABX is designed around a solid working platform. A 2″ treated wood floor provides a dependable deck surface, while 1.9″ round tubing rails and heavy 12-gauge fenders bring added protection and a more aggressive, purpose-built look.

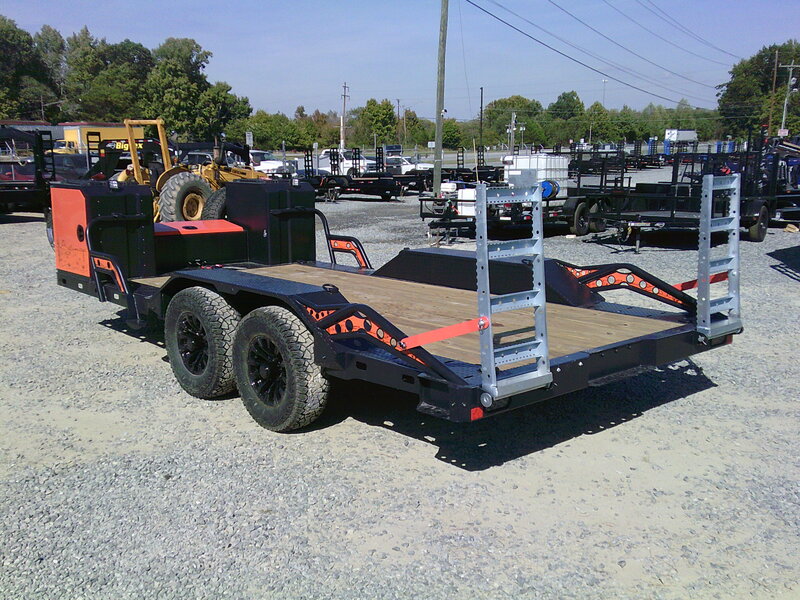

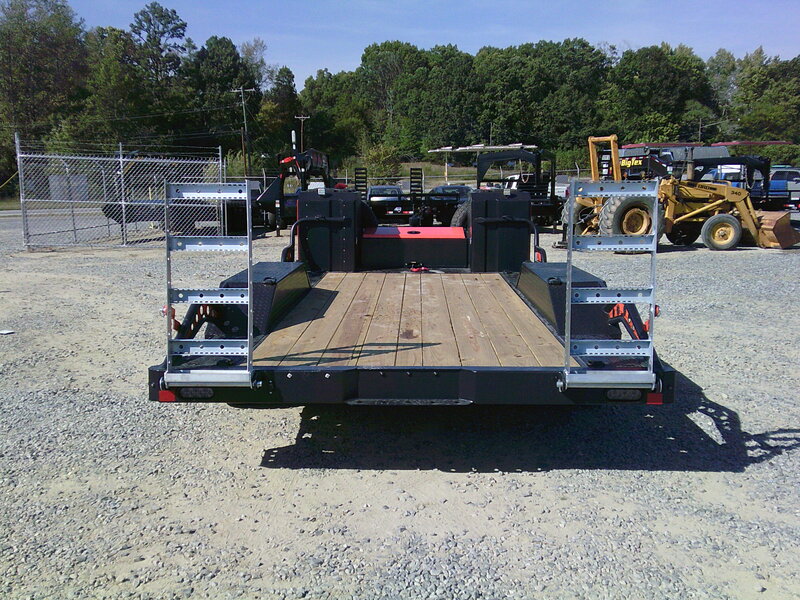

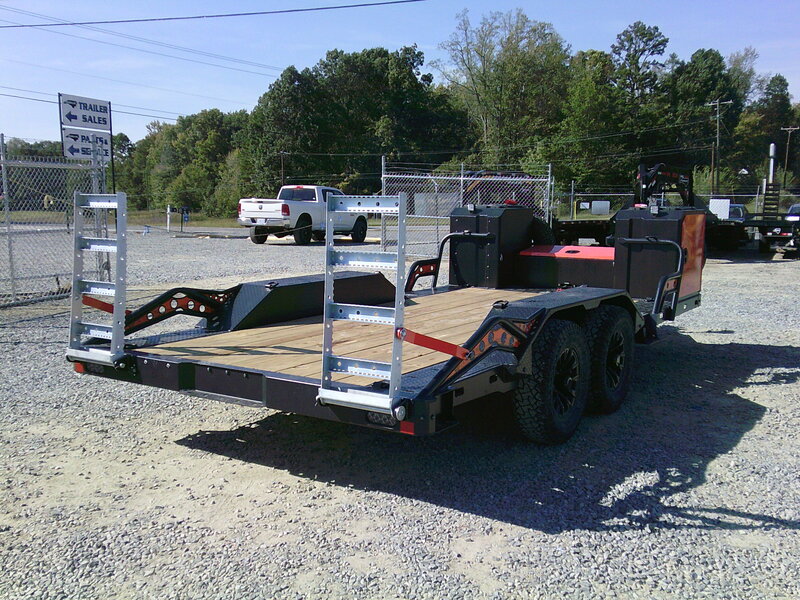

Loading is simple with a 3′ flip ramp and EZ Slam safety latch. Once the machine is on the deck, multiple welded D-rings, side-mounted tie-down points, and a recessed front-center tie-down ring give you more ways to secure the load exactly where it needs to stay.

The 16′ model includes eight welded D-rings, while the 18′ model includes twelve. Both configurations also include two additional side tie-down rings and one recessed front-center tie-down ring, giving the ABX the flexibility to handle everything from powersports equipment to jobsite loads.

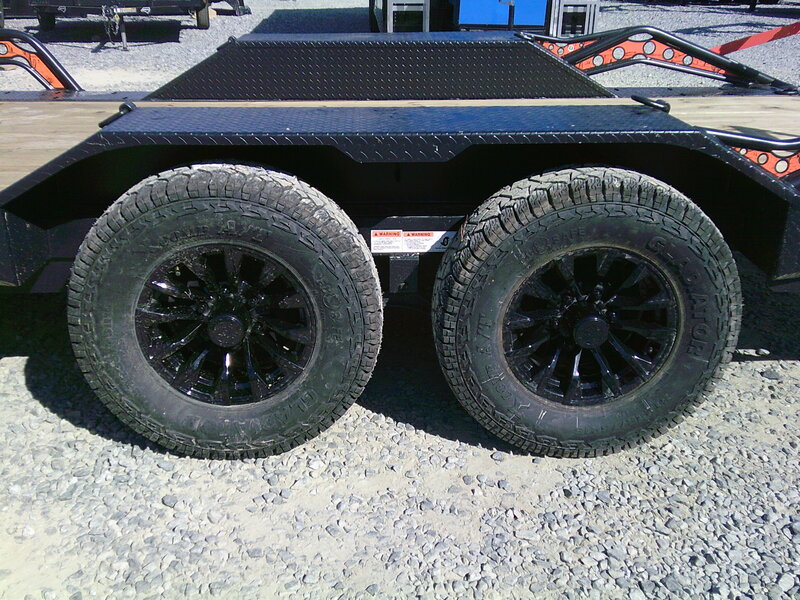

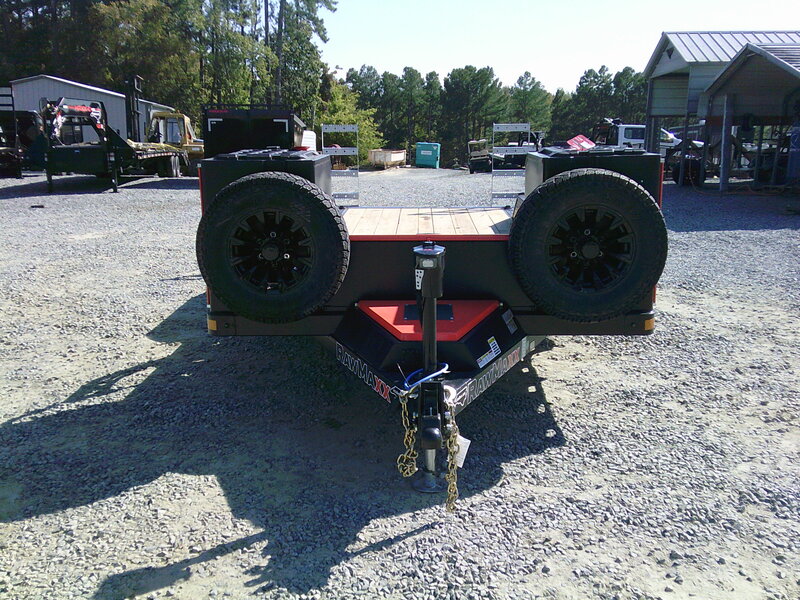

Spring suspension, an adjustable 2-5/16″ ball coupler, electric brakes, 8-ply radial tires, and an included spare tire mount keep the ABX balanced and ready for the road. Two work lights, LED marker lights, DOT-approved rear lights, and an all-weather wiring harness provide visibility when the day starts early or runs late.

Finished in Midnight Black with Classic Orange trim, the ABX carries a look that feels just as at home behind a built truck in the desert as it does loaded with equipment on the jobsite.

The RawMaxx ABX — built to haul the work, the toys, and everything that makes the trip worth taking.

• GVWR: 10,000 lbs
• PAYLOAD: 7,175 lbs
• HITCH: 2-5/16" Ball
• TIRES: 15" ST235/75R-15
