Platform Dump Bed Truck Beds
This platform dump bed truck bed offers the lowest deck height on the market. Our headache rack features are unparalleled when it comes to other dump beds. With durability & strength in mind, this bed was built for YOU, our customer. This bed utilizes a 3/16” thick steel deck which provides a durable surface for your toughest jobs. All truck beds go through a 6-part commercial wet paint undercoating with chip guard and self-healing properties.
• Available Lengths: 10′ to 12′ Long
• Low Profile Bed
• Built-In Cab Protector
• Hoist
• D-Rings on Headache Rack
• 2-1/2″ Receiver Hitch (18,500 lb rating)
• 2-5/16″ Ball Gooseneck Hitch (30,000 lb rating)
Standard Features
LED LIGHTING
Meets all Federal Motor Vehicle Safety Standards (FMVSS 108) with built-in reflectors.
SQUARE HEADACHE RACK
This headache rack is designed with the consumer in mind. We offer the strongest headache rack in the market featuring 3/16″ Steel and reinforced with 2″x2″ Steel Tubes. This comes standard with (8) D-rings to attach your cargo and includes a built-in 14″ cab protector.
3/16″ STEEL TREAD PLATE & STEEL SUB-FRAME
Thicker tread plate for a more durable and stronger truck bed.
Our CNC laser cut sub-frame in designed to use a bolt-on mounting kit to eliminate welding. Cross Members are set at 12″ on center to provide a more durable bed.
**if getting goose ball or receiver**
ANTI-SAIL MUD FLAPS
Bolt-on anti-sail brackets keep mud flaps from swaying into exhaust heat.
OEM 7-WAY SOCKET
7-way socket wired for brake controller integration.
BACK-UP CAMERA AND SENSOR INSTALLATION
Installation of factory sensors and/or back camera.
*Truck must come with existing sensors and/or camera to transfer/reinstall.
WIRING
Professional-style wiring harness runs to a 7-post junction box. Our harness is color-coded and uses heat shrink connectors and loom to to prevent corrosion. Each bed is engineered with pre-cut CNC holes to hold the harness in place.
RECEIVER HITCH
We use a 2-1/2″ receiver rated at 18,500 lbs that is integrated into our sub-frame with a reinforced safety chain plate to add strength.
GOOSENECK HITCH
The gooseneck hitch incorporates a 2-5/16″ gooseball rated at 30,000 lbs. At 3/4″ thickness, you won’t find a stronger hitch on the market. Our hitch spans the width of your chassis to increase load balance while towing.
ICC BUMPER
Our ICC bumper is bolt-on and has an integrated 2-1/2″ receiver rated at 18,500 lbs. It includes a (2) 6″ Oval Red Lights for Stop/Tail/Turn and (2) 6″ Oval Clear Lights for Reverse. Meets all Federal Motor Vehicle Safety Standards for rear-impact collisions.
CAB PROTECTOR
Integrated to the headache rack to help protect the cab.

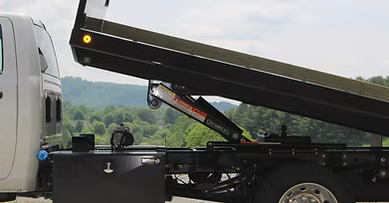

HOIST
Bed Options
PERSONALIZED HEADACHE RACK
Custom logo design upgrade to add a personal touch to your truck bed. The only requirement is an image or DXF format file.
AERODYNAMIC HEADACHE RACK
Designed for increased fuel economy when towing to reduce drag. Includes a sleek, arched design and is formed to match the contour of your truck. We also offer a customizable logo option to put a personal touch on your bed.
UNDERBODY TOOLBOX
Engineered to flow with the design of our beds, this bolt-on design allows for quick and easy installation. All boxes are equipped with a compression latch to ensure a tight seal on the internal gasket to keep the elements out.
DROP-IN SIDE BOARDS
Gain additional load retention options.
REAR UNDERBODY STEP LADDER
Slide and stow the rear step ladder for easy access to the flatbed.
NC Trailers and New River Manufacturing have partnered to provide amazing truck bed solutions! While we carry a limited number of flatbed truck beds in stock, we have many additional options and configurations we can get factory-built to meet your needs. We offer full-service installation of your truck bed at both our Thomasville and Winston-Salem locations! Schedule an appointment today!
